DESCRIPTION

Basic Info

Model NO.	PX-BFC80
Automatic Grade	Automatic
Material Type	Liquid
Filling Valve Head	Multi-Head
Feed Cylinder Structure	Multi-Room Feeding
Dosing Device	Plunger
Filling Principle	Pressure
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Rotary
Packaging	Bottle
Packaging Material	Metal
Driving	Servo Driving
Human Protection	Frame with Emergency Switch
Accuracy	99%
Drive	Servo System
Capacity	2000 Bph or Customized
Transport Package	Non-Fumigation Wooden Box
Specification	1200*900*2200mm
Trademark	PAIXIE
Origin	Shanghai
HS Code	8422301090
Production Capacity	2500-3000bph

Packaging & Delivery

Package size per unit product 2500.00cm * 1800.00cm * 1650.00cm Gross weight per unit product 800.000kg

Product Description

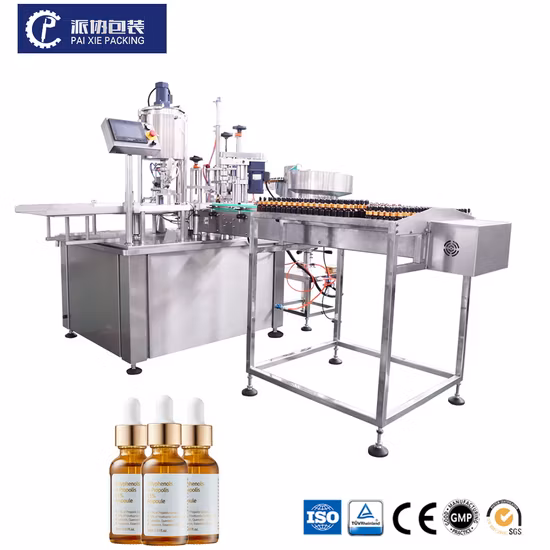

Real image in the factory

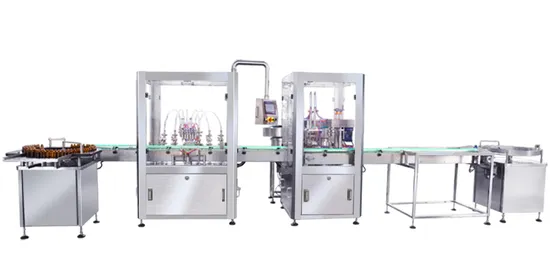

Product DescriptionThe latest PX-BFC80 packaging line is suitable for small glass bottles, plastic bottles and other packaging processes. It is mainly composed of bottle sorting + filling + capping + labeling + cartoning and other parts. The whole line is controlled by PLC, all parameter adjustments are adjusted by the touch screen, and the aviation plug is applied to the circuit connection, you do not need to supply power to each machine separately. In terms of manual protection, we use a 150mm wide protective cover, equipped with an emergency stop sensor switch, which ensures the safety of labor, and the plexiglass cover ensures the safety of product production. This fully automatic baby oul metal ball filer essential oil is the latest design. The device will automatically arrange the upper rollers and insert them into the bottle mouth. At the same time, the equipment sets the feeding table, filling, and capping stations on a host,which greatly reduces the footprint. This is an excellent choice for customers with a small workshop area. Parameters

Model	PX-BFC80
Yield(pcs/min)	40-45BPM (customized)
Filling heads	1(customized)
Filling pump	Piston pump
Work voltage	110/220/380V 50/60HZ
Air presstion	0.6MPA
Accuracy	±1%
Power	2.5KW
Driving	Servo motor
Pump volume	10-100ml
United size	1200*900*2200mm
Hot filling	Normal temperature filling
Weight	550kg
Material	SS304+SS316
HMI	7.5" Color Touch Screen Control
Protection	Comprehensive Safety Alarm System
Speed controller	Variable Speed Controls
Detecting system	Vial Detector & Counter

You may be worried about1- How can I fill so many formats my bottles with the machine perfectly without complex adjusment? 2- How can I understand your quality? I do not want any kinds bad machine which failed to live up to my investment.3- How can I know your machine life? It looks always beautiful but only in your room. 4- How can I install such a big long machine by myself? It looks never easy at all.5- How can I recognize the real difference in chinese market? So many suppliers quoted me every day!!!6- What should I do if the machine is broken? Who is gonna to help me? What PAIXIE do

Compared with traditional machinery, PAIXIE smart filler has characters below which are beneficial to each customer operation experience: 1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing.2- 150mm width SS304 protection frame which equiped with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection.3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting.4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly, protect the quality of customer's product. 5- Machines are delivered as whole which solving the stress of after-sale installation for customer . PAIXIE'S technicians are standing by all time for on-site service

Product details

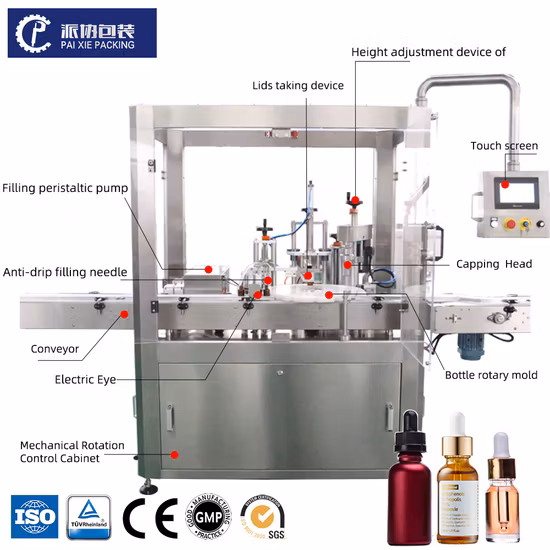

Bottle feeding tableFilling and capping station
Piston pump filling station drived by servo which is contributed to precision and speed control.

Cap unscramblerWhy Choose PAIXIE
