DESCRIPTION

Basic Info

Model NO.	JFRO-2T
Capacity	2t
RO Frame	SUS304
Warranty	1year
Host Size	800X600X1600mm (Can Be Customized)
Power	2.2kw
Producing Capacity	2t/H
Membrane Size	8040
Membrane Elements	Dow/Hydranautics/Troy/Vontron(Optional)
Recovery Rate	50%
Desalination Rate	99.5%
Tank Material	Ss/FRP(Optional)
Control Valve	Automatic
Control Valve Brand	Fleck/Runxin
Raw Water Pump	Cnp/Nyp
Operating Pressure	0.8-1.2MPa
Designed Water Inlet	4t/H
Transport Package	Wooden Packing
Specification	3.5m3
Trademark	Jufu
Origin	China
HS Code	8421219990
Production Capacity	500pieces/Year

Product Description

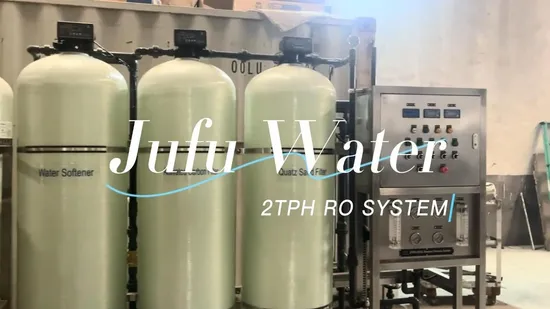

Reverse Osmosis Water Treatment Equipment 2tp Fully Auto Water Filter System

Unique characteristics of RO Water Treatment System

1. The single-membrane desalination rate can reach 99%, the desalination rate of the primary reverse osmosis system can generally be stabilized above 90%, and the desalination rate of the secondary reverse osmosis system can generally be stabilized above 98%.

2. Because the reverse osmosis equipment can effectively remove microorganisms, organic substances and inorganic substances such as iron and silicon, the quality of the effluent is higher than other methods.

3. The equipment has small footprint, compact structure, reliable operation and convenient operation.

4. The system is simple, the degree of automation is high, the fault is automatically shut down, and it has the function of automatic protection.

5. The recovery rate can reach more than 70%.

6. Save the chemical consumption cost, labor cost and waste water treatment cost generated by regeneration, and reduce environmental pollution.

Definition of RO Water Treatment System

The reverse osmosis water treatment system uses municipal water as raw water, passes through a pre-filter (water softener is optional), and reverse osmosis membrane treats the water.

Reverse osmosis water system is the raw water through the precision filter, granular activated carbon filter, activated carbon filter, compression, and then through the pressure of the pump, the use of reverse osmosis membrane pore size 1/10000 microns to make relatively high concentrations of water into the low concentration of water, and industrial pollutants, heavy metals, bacteria, viruses and other impurities mixed in the water of a large number of sufficient isolation, It can remove more than 98% of soluble salts and more than 99% of colloid, microorganisms, particles and organic matter in water.

1. Original water pump: to provide pressure to quartz sand filter/activated carbon filter/water softener;

2. Quartz sand filter: glass fiber as the shell, filled with quartz sand, can filter large particle impurities, suspended matter, colloid, etc.. It is important to remove sediment; (Optional shell and stainless steel, carbon steel)

Activated carbon filter: glass fiber as shell, filled with activated carbon, remove color, odor, residual chlorine and organic matter; (Optional shell and stainless steel, carbon steel)

4. Safety filter: prevent large particles, bacteria and viruses from entering RO film, accuracy is 5μm;

5. Reverse osmosis system: can remove particles, colloid, organic impurities, heavy metal ions, bacteria, virus, heat source, etc. Hazardous substances and 99% dissolved salt;

6. High pressure pump: provide high pressure to reverse osmosis membrane;

7. Polypropylene filter cartridge: interception of large particles, bacteria and viruses with accuracy greater than 5μm. (Optional);

8. Folding filter cartridge: intercept large particles, bacteria and viruses with accuracy > 0.22μm. (optional).

The pretreatment of reverse osmosis water treatment system can ensure the stable operation and service life of reverse osmosis device, and has the following functions:

(1) To prevent scaling on the film surface (including CaCo3, CaSO4, SrSO4, CaF2, SiO2, iron and aluminum oxide, etc.);

(2) to prevent colloidal substances and suspended solid particles fouling;

(3) to prevent pollution and blockage of organic matter;

(4) to prevent microbial fouling;

(5) to prevent oxidative damage to the film by oxidizing substances;

(6) Keep the water yield of reverse osmosis device stable.

Reverse osmosis water treatment pretreatment system: iron and manganese filter, multi-media filter, activated carbon filter, sodium ion exchanger, precision filter, ultrafiltration.

A: What 's the raw source of your water? If possible, please provide Water Analysis Report. B: What's your request on the output capacity of the equipment? C: What's the application for the project? D: What's the piping standard applied in your local market? E: Do you need on-site installation guidance? A: Tailor-made solutions will be provided by Jufu's professional engineer based on your requirements. All the pain-pointsof the project will be highlighted and solved for overall optimization. A: Deposit in advance and balance before delivery. A: It depends. 3-5 weeks for general products. A: Jufu offers 1 year warranty for the products. The product itself can work for 5 years with proper use and maintenance.
